系統

基於微控制器與微處理器發展對應軟韌體,結合硬體(觸控顯示模組,無線射頻感測,飛時測距,有/無線通訊)及機殼成為一個系統

  • 產品描述
image 1

Software

Mildex依據客戶需求作業系統,開發對應的軟體功能

image 1
image 2
image 3
image 4

Firmware/Platform

Mildex可以在下述MCU或MPU,設計開發對應的韌體功能及整合各項功能,滿足客戶需求

image b1 image b2 image b3 image b4 image b5 image b6 image b7 image b8 image b9 image b10

Product

可攜式生醫檢測裝置(Bioreader)

Core ARM Cortex M33
Memory 2MB Flash and 768KB RAM
TDM
  1. LCM
    2.8”,400nits, 240x320 resolution
  2. Touch
    2 fingers
Power Input
  1. Lithium-ion Rechargeable Battery 3150mAh
  2. USB Type C 5Vdc(Typ.)
Wireless
  1. WiFi 4 802.11a/b/g/n、2.4GHz 或 5GHz
  2. BLE 5.0
Barcode 1D/2D support
Storage 2000 measurement results

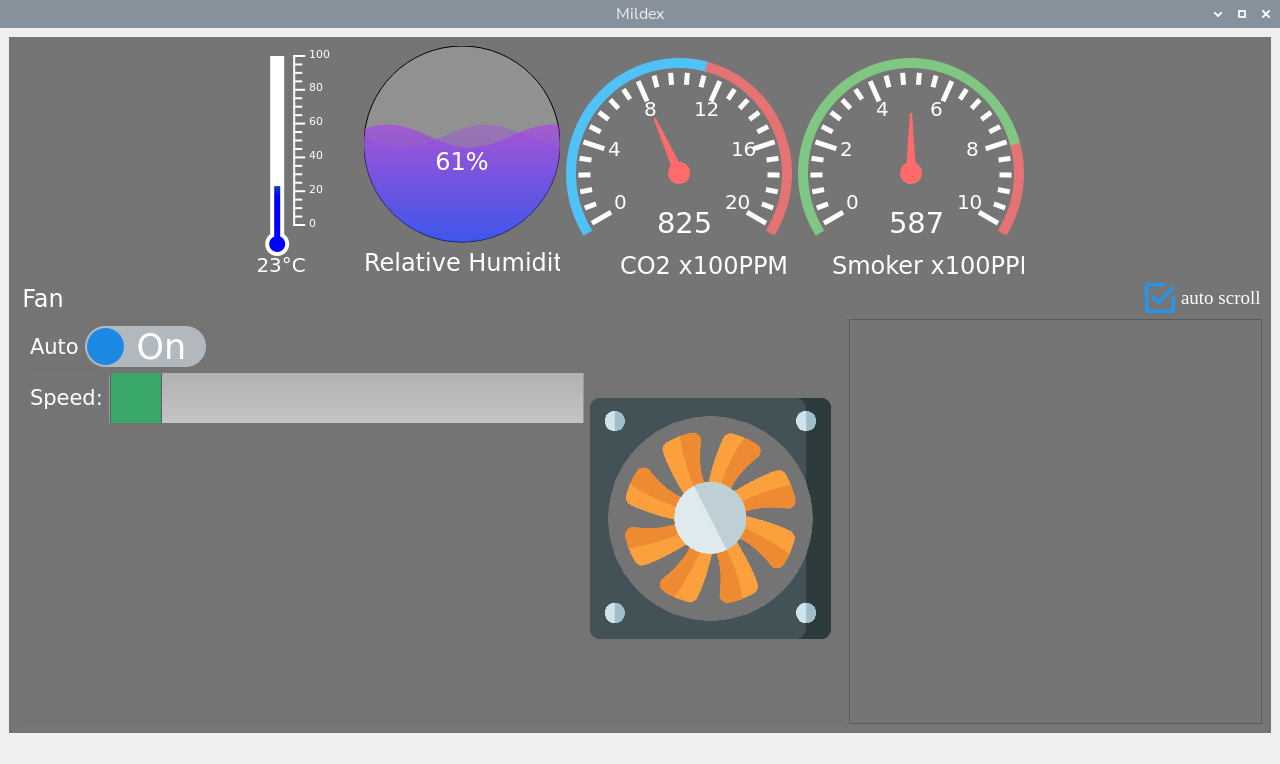

人機介面系統(HMI)

Core ARM Cortex A76 (2.4GHz, 64bits, Quad Core)
Memory 64GB Flash and LPDDR4 8GB
TDM
  1. LCM
    10.1”,330nits, 1280x800 resolution
  2. Touch
    10 fingers
Power Input DC Jack 12Vdc
Wireless
  1. WiFi 5 802.11 AC
  2. Bluetooth 5.0
Ethernet 1Gbps
USB 2.0x1port, 3.0*2port

系統整合

image 1
