SYSTEM

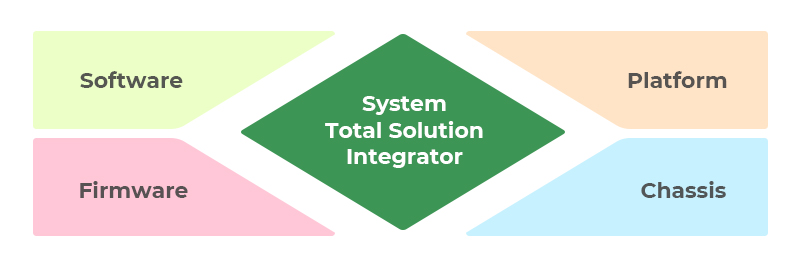

The system total solution includes software, firmware, platform, and chassis.

  • Product Description
image 1

Software

Mildex can design and develop the software based on these operation system and meet customer’s requirement function.

image 1
image 2
image 3
image 4

Firmware/Platform

Mildex can design, develop and integrate the platform and firmware based on these MCU and MPU, meet customer’s requirement function.

image b1 image b2 image b3 image b4 image b5 image b6 image b7 image b8 image b9 image b10

Product

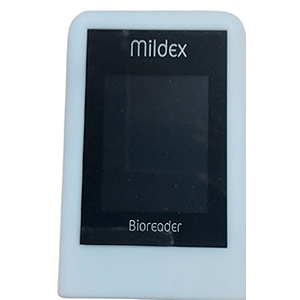

Bioreader

Core ARM Cortex M33
Memory 2MB Flash and 768KB RAM
TDM
  1. LCM
    2.8”,400nits, 240x320 resolution
  2. Touch
    2 fingers
Power Input
  1. Lithium-ion Rechargeable Battery 3150mAh
  2. USB Type C 5Vdc(Typ.)
Wireless
  1. WiFi 4 802.11a/b/g/n、2.4GHz 或 5GHz
  2. BLE 5.0
Barcode 1D/2D support
Storage 2000 measurement results

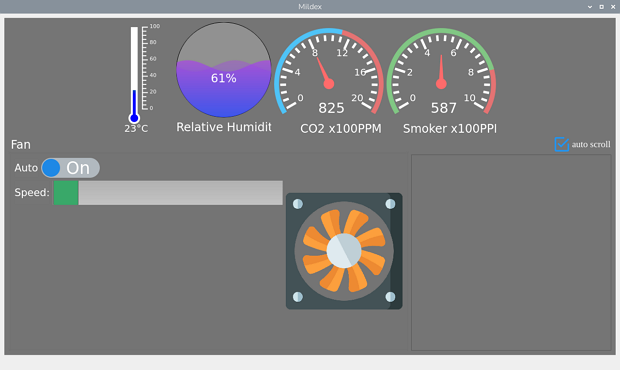

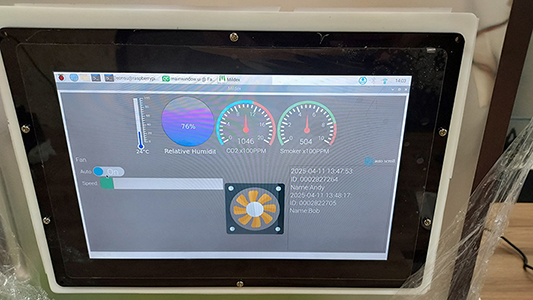

HMI

Core ARM Cortex A76 (2.4GHz, 64bits, Quad Core)
Memory 64GB Flash and LPDDR4 8GB
TDM
  1. LCM
    10.1”,330nits, 1280x800 resolution
  2. Touch
    10 fingers
Power Input DC Jack 12Vdc
Wireless
  1. WiFi 5 802.11 AC
  2. Bluetooth 5.0
Ethernet 1Gbps
USB 2.0x1port, 3.0*2port

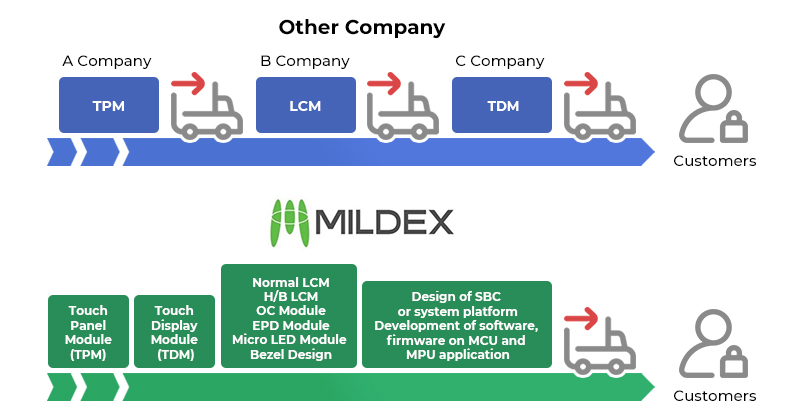

One-Stop service
